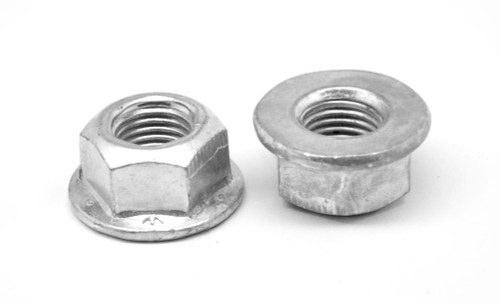

PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specifications to which they are manufactured. Specifications allow for tolerances in dimension and shape, which can vary from lot to lot.
| PRODUCT SPECIFICATIONS (Part # 0000-259090) | |
|---|---|
| Fastener Type: | Stover All Metal Flange Locknut |
| Size Description: | M12 x 1.75 |
| Diameter/Nominal Size: | M12 |
| Thread Pitch: | 1.75 |
| Thread Pitch Type: | Coarse |
| Thread Direction: | Right |
| System of Measurement: | Metric |
| Property Class: | 8 |
| Material: | Medium Carbon Steel |
| Finish: | Zinc Plated |
| Drive Type: | External Hex |
| Standards Met: | DIN 6927 / EN1664 |
| Used with: | Bolts/Screws up to Class 8.8 |
| Average Piece Weight: | 0.0420000 lbs. |
