PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specifications to which they are manufactured. Specifications allow for tolerances in dimension and shape, which can vary from lot to lot.

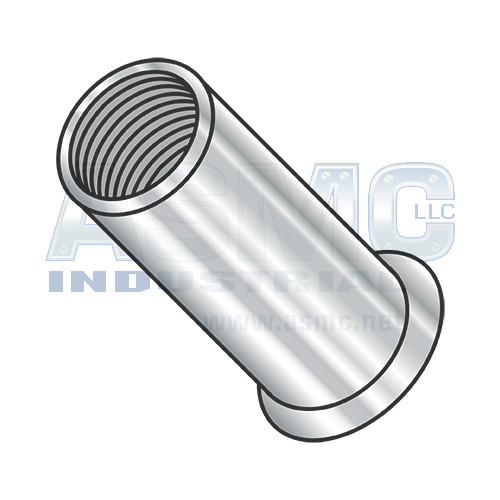

8-32-.080 Small Head Rivet Nut Stainless Steel Cleaned and Polished NON-RIBBED

Price Per Piece: $4.3901

Part #:: 0000-284107
Minimum Purchase:: 1000 pieces

PRODUCT SPECIFICATIONS (Part # 0000-284107)
Fastener Type:	Rivet Nut
Size Description:	8-32-.080
Diameter/Nominal Size:	8
Thread Pitch:	32
Thread Direction:	Right
System of Measurement:	Inch
Material:	Stainless Steel
Finish:	Plain Finish (No Plating)
Average Piece Weight:	0.0025080 lbs.

Nuts are almost always used in conjunction with a mating bolt to fasten multiple parts together; kept together by a combination of their threads' friction, a slight stretching of the bolt, and compression of the parts to be held together.
