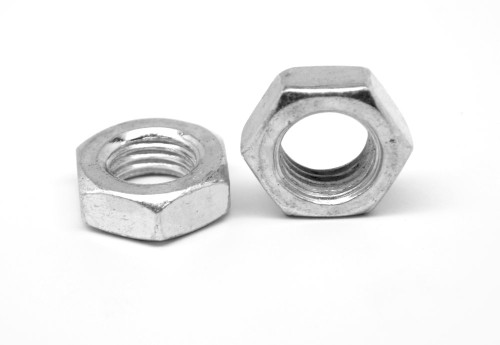

PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specifications to which they are manufactured. Specifications allow for tolerances in dimension and shape, which can vary from lot to lot.

#10-32 x 5/16 x 7/64" Fine Thread Hex Machine Screw Nut Small Pattern Stainless Steel 18-8

Price Per Piece: $0.1666

Part #:: 0000-200482
Minimum Purchase:: 5000 pieces

PRODUCT SPECIFICATIONS (Part # 0000-200482)
Fastener Type:	Hex Machine Screw Nut Small Pattern
Size Description:	#10-32 x 5/16 x 7/64"
Diameter/Nominal Size:	#10
Thickness:	0.102-0.114"
Wrench Size/Across Flats:	5/16" (0.302-0.312")
Width Across Corners:	0.344-0.361"
Thread Pitch:	32
Thread Pitch Type:	Fine
Thread Direction:	Right
System of Measurement:	Inch
Material:	Stainless Steel 18-8
Finish:	Plain Finish (No Plating)
Drive Type:	External Hex
Average Piece Weight:	0.0028800 lbs.

Nuts are almost always used in conjunction with a mating bolt to fasten multiple parts together; kept together by a combination of their threads' friction, a slight stretching of the bolt, and compression of the parts to be held together.
