PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specifications to which they are manufactured. Specifications allow for tolerances in dimension and shape, which can vary from lot to lot.

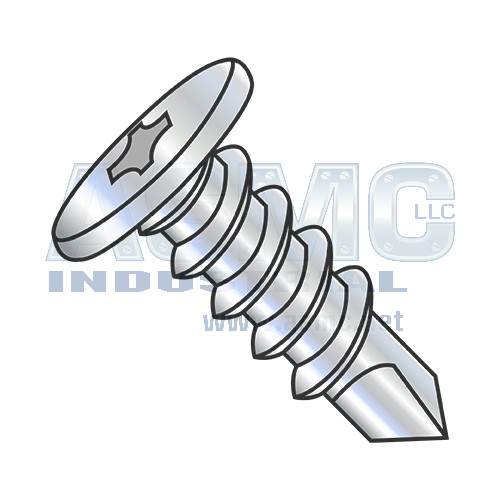

10-16X1 1/2 Phillips Pancake Head Self Drilling Screw Full Thread Zinc Bake

Price Per Piece: $0.2786

Part #:: 0000-283268
Minimum Purchase:: 3000 pieces

PRODUCT SPECIFICATIONS (Part # 0000-283268)
Fastener Type:	Self Drilling Screw
Size Description:	10-16X1 1/2
Diameter/Nominal Size:	10
Length:	1 1/2
Thread Pitch:	16
Thread Direction:	Right
System of Measurement:	Inch
Material:	Steel
Finish:	Zinc Plated
Drive Type:	Phillips
Average Piece Weight:	0.0092000 lbs.

Self-Drilling Screws (sometimes incorrectly referred to as self-tapping screws) enable drilling without first creating a pilot hole. Self-drilling screws or (SDS's) are usually used to join materials like sheet metal to other materials, such as metal or wood.
